HPE ProLiant DL340 Gen12 6505P Server
12–core 2.20 GHz, 64GB RAM
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Do you need a 2U single-socket server that highlights reduced power consumption and better thermals for your data and storage-centric workloads that need more PCIe lanes?
The HPE ProLiant Compute DL340 Gen12 is a 2U 1P server that offers three CTO chassis that support SFF, LFF, and GPU configurations. The 3-box modular front design enhances the configuration flexibility. Due to the configuration flexibility and the energy efficiency (reduced power consumption due to better thermals within a 2U chassis), the HPE ProLiant Compute DL340 Gen12 server is ideal for customers that have a requirement for Infrastructure-as-a-Service (IaaS), Platform-as-a Service (PaaS), and Software-as-a-Service (SaaS) workloads.
Powered by Intel® Xeon® 6 processors with up to 144 cores, increased memory capability (up to 4 TB), and high-speed PCIe Gen5, the HPE ProLiant Compute DL340 Gen12 server is a great 2U single-socket performance solution driving better datacenter efficiency.
P87780-005 – HPE ProLiant Compute DL340 Gen12 server with one Intel® Xeon® 6505P Processor, 64 GB (1x64 GB) Dual Rank Memory, one HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller, support for eight SFF drives, six HPE ProLiant DL3X5 Gen11 2U Standard Fan Kits, two HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSDs, two HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kits, one TPM (Trusted Platform Module), one HPE Bezel Lock Kit, one HPE Gen11 2U Bezel Kit, one HPE ProLiant DL385 Gen11 Intrusion Cable Kit, and a 3/3/3 warranty.
What’s New
- Powered by Intel® Xeon® 6 processors; Up to 144 cores per socket. Increased memory bandwidth to 6400 MT/s, up to 4 TB DDR5 memory capacity.
Features:
Next-Level Security, Chip to Cloud
From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Compute Gen12 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements.
Silicon root of trust by HPE, establishes a zero-trust security framework at the silicon level to ensure firmware integrity. Continuous protection detects compromised servers and prevents them from booting if malicious code is found. Edge servers are safeguarded with default IDevID certificates.
HPE ProLiant Compute servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of operating system, application and data connections, providing the fastest path to bring a server back online and into normal operations.
Intel® Xeon® 6 processors add hardware- and software-assisted security features such as Intel® Software Guard Extensions (SGX) for application isolation and Trusted Domain Extensions (TDX) for VM isolation, which help protect the server hardware foundation and safeguard data in memory.
HPE iLO 7 supports quantum-resistant (PQC) algorithms and signs HPE ProLiant Compute Gen12 firmware with algorithms approved by CNSA 2.0, which enhances resilience against potential future attacks by quantum computers.
Optimized Performance for your Workloads: Accelerated, Open, and Efficient
The HPE ProLiant Compute DL340 Gen12 server is an excellent choice for data and storage centric workloads that need more PCIe lanes.
Harness major compute performance. The HPE ProLiant Compute DL340 Gen12 server is powered by Intel® Xeon® 6 processors that support up to 144 cores.
Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 6x16 PCIe Gen5 and 2 x16 OCP slots to improve I/O throughput and reduce latency.
Utilize 16 DIMM slots for up to 4 TB DDR5 memory with increased memory bandwidth and performance.
The server provides air cooling with standard or performance heatsink and fan kits.
Intuitive Cloud Operating Experience: Simple, Self-service, and Automated
HPE ProLiant Compute DL340 Gen12 servers are engineered for your hybrid world. The new HPE ProLiant Compute Gen12 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.
Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.
Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.
Industry-leading Services and Ease of Deployment
The HPE ProLiant Compute DL340 Gen12 server comes with a complete set of HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.
HPE Services simplify all stages of the IT journey. Advisory and Transformation Services professionals understand your challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
HPE IT investment solutions help you transform into a digital business with IT economics that align with your business goals.
Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.
Technical Specifications:
| HPE ProLiant Compute DL340 Gen12 6505P 12c 1x64GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS NA Server Specifications | |
|---|---|
| Product Number | P87780-005 |
| Processor name | Intel® Xeon® 6505P (12 core, 2.20 GHz, 48 MB L3, 150W) |
| Processor number | 1 processor included |
| Processor core available | 12 core |
| Processor cache | 48 MB L3 |
| Processor speed | 2.20 GHz |
| Memory type | HPE DDR5 Smart Memory |
| Included memory | 64 GB (1x64 GB, 6400 MT/s) |
| Accelerators | Maximum of 4 double-wide in the front or 6 single-wide in the rear, depending on model |
| System fan features | 6x Standard Fans |
| Expansion slots | Up to 6 PCIe Gen5, and 2 OCP 3.0, for detailed descriptions reference the QuickSpecs |
| Form factor | 2U Rack |
| Network controller | Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE |
| Storage controller | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Included drives | 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Optical drive type | Optional DVD-ROM / DVD-RW Optical Drive |
| Power supply type | 2x HPE 1000W M-CRPS Titanium Hot Plug Power Supply Kit |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses), HPE Compute Ops Management (optional subscription available) |
| Warranty | Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. |
Hardware Specs:
The DL340 Gen12 is a 2U 1P server that offers 3 CTO chassis that support SFF, LFF, and GPU configurations.
The 3-box modular front design enhances the configuration flexibility. Due to the configuration flexibility and energy efficiency (reduced power consumption due to better thermals within a 2U chassis), the DL340 Gen12 server is ideal for customers that have a requirement for Infrastructure as a Service (IaaS), Platform as a Service (PaaS), and Software as a Service (SaaS) workloads.
The HPE ProLiant Compute DL340 Gen12 is powered by Intel® Xeon® 6 processors with up to 144 cores, increased memory capability (up to 4TB), and high-speed PCIe Gen5. The DL340 Gen12 SP server is a great 2U single socket performance solution driving better datacenter efficiency.
HPE ProLiant DL340 Gen12 server

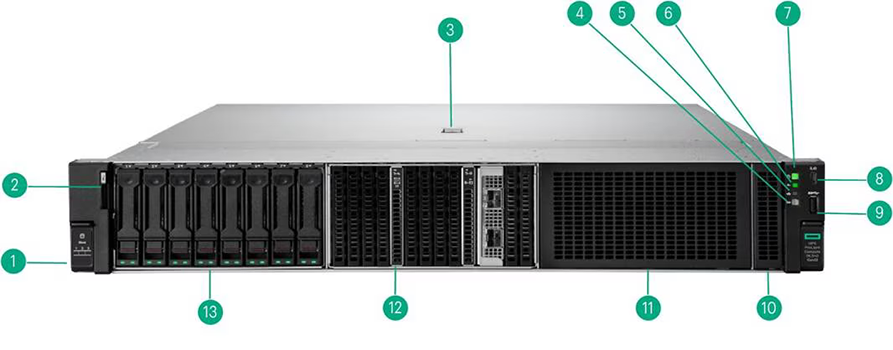

Front View – SFF chassis with optional EDSFF blank, OCP, and Drive Bay blank shown
| 1 | Chassis Box Label |
| 2 | Serial Number Label Pull Tab |
| 3 | Quick Removal Access Panel Latch |
| 4 | UID Button / LED |
| 5 | NIC Status LED |
| 6 | Health LED |
| 7 | Power On / Standby button |
| 8 | iLO Service Port |
| 9 | USB 3.2 Port |
| 10 | System Insight Display (optional) |
| 11 | Box 3 (shown with blank panel) |
| 12 | Box 2 (shown with optional OCP and EDSFF slots) |
| 13 | Box 1 (shown with optional 8SFF drives) |

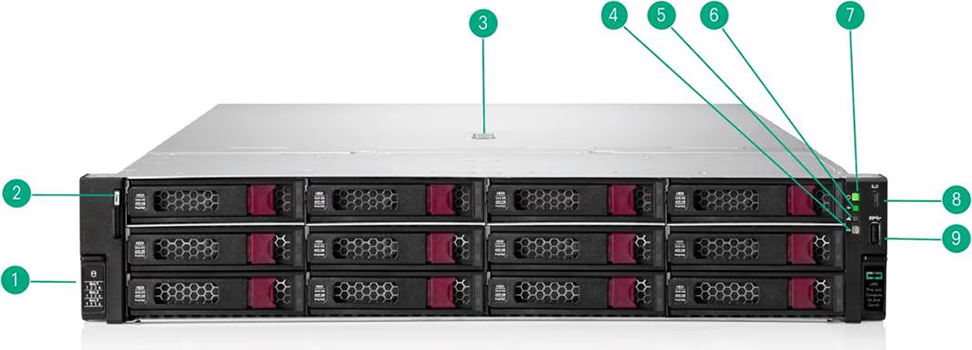

Front View – LFF chassis
| 1 | Chassis Box Label |
| 2 | Serial Number Label Pull Tab |
| 3 | Quick Removal Access Panel Latch |
| 4 | UID Button / LED |
| 5 | NIC Status LED |
| 6 | Health LED |
| 7 | Power On / Standby button |
| 8 | iLO Service Port |
| 9 | USB 3.2 Port |

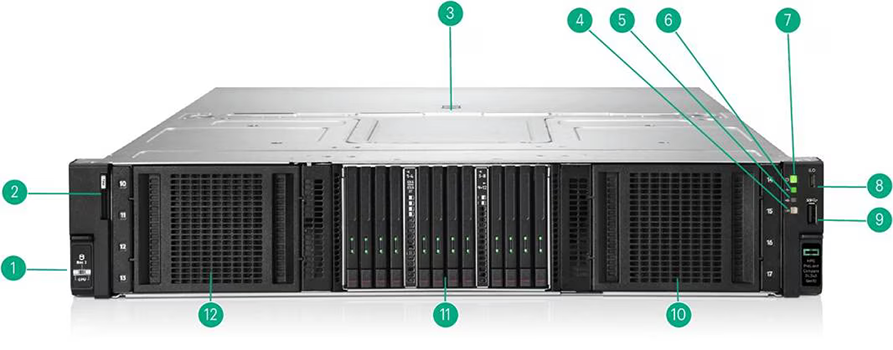

Front View – GPU chassis
| 1 | Chassis Box Label |
| 2 | Serial Number Label Pull Tab |
| 3 | Quick Removal Access Panel Latch |
| 4 | UID Button / LED |
| 5 | NIC Status LED |
| 6 | Health LED |
| 7 | Power On / Standby button |
| 8 | iLO Service Port |
| 9 | USB 3.2 Port |
| 10 | Box 3 / GPU Cage 2 |
| 11 | Box 2 (shown with optional EDSFF drive slots) |
| 12 | Box 1 / GPU Cage 1 |

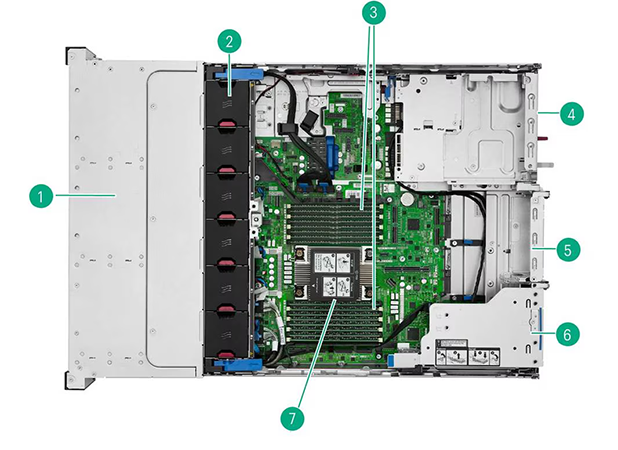

Internal View – SFF chassis
| 1 | Drive Bays |
| 2 | 6 System Fans |
| 3 | Memory |
| 4 | Blank Upper; PSU Lower |
| 5 | Blank / Secondary Riser |
| 6 | Primary Riser |
| 7 | CPU |

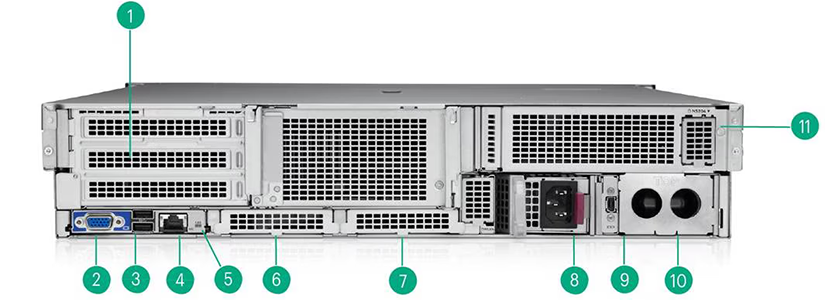

Rear View – SFF chassis
| 1 | 3 PCIe5 x16 slots |
| 2 | VGA Port |
| 3 | 2 USB 3.2 Gen1 ports |
| 4 | iLO dedicated network port |
| 5 | UID (Unit ID) LED |
| 6 | Slot 20 OCP A PCIe5 x16 |
| 7 | Slot 21 OCP B PCIe5 x16 (optional) |
| 8 | M-CRPS 2 (optional) |
| 9 | ix Port (optional) |
| 10 | M-CRPS |
| 11 | Boot Device (optional) |
Documentation:
Download the HPE ProLiant Compute DL340 Gen12 6505P 12c 1x64GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS NA Server Data Sheet (.PDF)
Download the HPE ProLiant DL340 Gen12 Server Datasheet (.PDF)
Download the HPE ProLiant DL340 Gen12 Server Quick Specs (.PDF)
*Intel® and Intel® Xeon® are trademarks of Intel Corporation in the U.S. and other countries. All other third-party trademark(s) is/are property of their respective owner(s).
