HPE ProLiant DL145 Gen11 8024P Server
8‑core 2.4GHz, 32GB RAM
Our Price: Request a Quote
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Are you ready to experience exceptional performance, affordability, and versatility with a modern edge computing server solution?
The HPE ProLiant DL145 Gen11 server is a 2U, single processor, robust edge computing server designed to cater to the needs of retail, manufacturing, telecommunications, and various other industries. It offers a compelling alternative to traditional servers with its sleek design, affordable pricing, and quiet operation.
Powered by the 4th Generation AMD® EPYC™ 8004 Zen4c architecture, this server provides up to 64 energy-efficient cores, PCIe Gen5 speed, and high-performance EDSFF storage. It can operate continuously in temperatures ranging from -5°C to 55°C and withstand high-dust and high-vibration environments. It is engineered for today's hybrid world, allowing enterprises to virtualise traditional IT applications to power their businesses and accelerate AI success.
What's New
- Support for 8 to 64 cores and TDP ratings of up to 200W.
- AMD EPYC 8004 (Siena) processor family, customised for edge computing and environments with physical constraints such as limited power, space, or cooling, 8 to 64 cores, TDP ratings of up to 200W.
- Compact size, 15 inches wide, 16 inches deep (without bezel), 20 inches (with bezel).
- Support for three single wide GPUs.
- Various mounting options – wall, desk, and rack.
- Operating temperature support up to 55°C, bezel with air filter, designed to qualify for NEBS Level 3.1
1 Typical NEBS certification is 90 days post production manufacture
Features:
Get Robust Edge Processing Power with a Small Server Footprint
The HPE ProLiant DL145 Gen11 reduces the reliance on cloud infrastructure by tackling a variety of low-latency workloads with efficient processing powered by AMD Siena processors.
The server supports up to 64 cores and offers support for 3x single wide GPUs, customising its performance for edge workloads while simultaneously delivering more energy efficiency through new EDSFF performance drives.
Additionally, the HPE Integrated Lights Out (iLO) and HPE Compute Ops Management allow for ease of management in a variety of locations. The HPE ProLiant DL145 Gen11 small server footprint puts sustainability efforts top of mind for users.
Customised for Diverse Portfolio of Edge Computing Environments
The HPE ProLiant DL145 leverages a 2U form factor, providing better cooling operation, airflow, and quiet acoustics.
Measuring approximately 15 inches wide and 16 inches deep, the HPE ProLiant DL145 Gen11 can be rack, wall, or desk mounted, providing flexibility for your unique business environment.
Designed to accommodate a variety of environmental constraints, this server can handle up to 55°C operating temperature and can withstand moderate to extreme shocks and vibration.
In locations with heavy amounts of dust and debris, the large air filter of the HPE ProLiant DL145 Gen11 is able to filter out harmful airborne material, keeping your device running efficiently.
Keeping your Data and Property Safe with Enhanced Security Features
The HPE ProLiant DL145 Gen11 provides the high-quality security features needed to verify your peace of mind.
Hewlett Packard Enterprise cares about keeping your property and data safe, especially at the edge, where data and property are more vulnerable to attack.
Built on the Hewlett Packard Enterprise signature silicon root of trust, HPE iLO 6, IDevID, and platform certificates, you can be sure your data is being protected from outside threats.
Chassis intrusion detection with bezel and Kensington locks keep your device safe from unwarranted theft or intrusions.
Technical Specifications:
| HPE ProLiant DL145 Gen11 8024P 2.4GHz 8c 1P 1x32GB-R 2SFF NS204i-u NC BCM5719 2x700W PS NA Server Specifications | |
|---|---|
| Detailed product description | HPE ProLiant DL145 Gen11 server with one AMD EPYC™ 8024P Processor, 32 GB (1x32 GB) Dual Rank Memory, one HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device, Drive Bay(s) for 2 small form factor drives, four standard fans, two HPE ProLiant DL110 700W Flex Slot Platinum Hot Plug Low Halogen AC Power Supply Kits, and a 3/3/3 warranty |
| Product Number | P79788-005 |
| Processor name | AMD EPYC™ 8024P (8 core, 2.40 GHz, 32 MB L3, 90W) |
| Processor number | 1 processor included |
| Processor core available | 8 core |
| Processor cache | 32 MB L3 |
| Processor speed | 2.40 GHz |
| Power supply type | 2x HPE ProLiant DL110 700W Flex Slot Platinum Hot Plug Low Halogen AC Power Supply Kit |
| Expansion slots | 4 x PCIe Gen5 (2 FHFL, 1 FHHL, 1 OCP 3.0); for detailed descriptions reference the QuickSpecs |
| Memory type | HPE DDR5 Smart Memory |
| Included Memory | 32 GB (1x32 GB, 4800 MT/s) |
| Included drives | None ship standard, 2 SFF supported |
| Form factor | 2U Rack |
| System fan features | 4x Standard Fans |
| Network controller | Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T OCP3 Adapter for HPE |
| Storage controller | HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses), HPE Compute Ops Management (subscription included) |
| Warranty | 3/3/3: Server warranty includes three years of parts, three years of labor, and three years of onsite support coverage. |
Hardware Specs:
HPE ProLiant DL145 Gen11 server

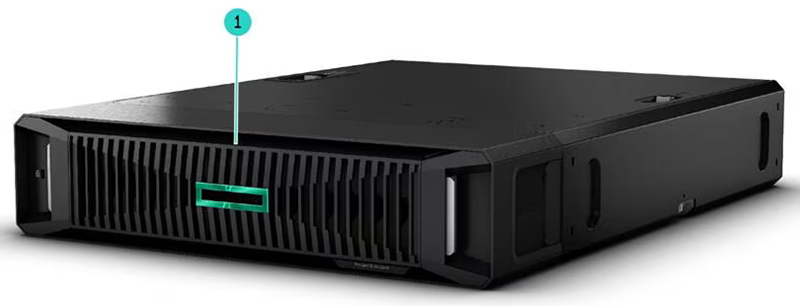

HPE ProLiant DL145 Gen11 Server – Front View (Bezel)
| 1 | Bezel Filter |

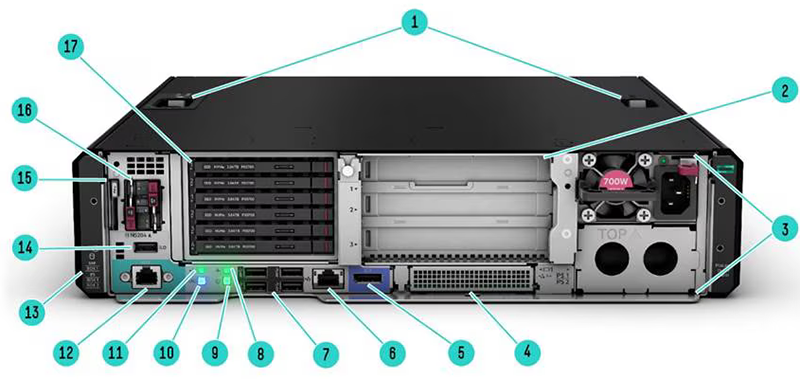

Front View
| 1 | Quick Removal Access Panel |
| 2 | Slot 1: PCIe 5.0 x16 Full Height Full Length (Optional) Slot 2: PCIe 5.0 x16 Full Height Full Length (Optional) Slot 3: PCIe 5.0 x16 Full Height Half Length Base Riser |
| 3 | Flex-Slot Power Supply 1 Flex-Slot Power Supply 2 (Optional) |
| 4 | Slot 21 OCP 3.0 PCIe 5.0 x16 |
| 5 | Display Port |
| 6 | iLO Management Port |
| 7 | USB 3.2 Gen1 Ports |
| 8 | Health LED |
| 9 | Power On/Standby Button and System Power LED |
| 10 | Unit ID Button/LED |
| 11 | NIC Status LED |
| 12 | Optional: Serial Port |
| 13 | Drive Support Label |
| 14 | iLO Service Port |
| 15 | Serial Number/iLO Information Pull Tab |
| 16 | Optional: NS204i-u Boot Device |
| 17 | Drive Bays Option 1: Up to 2SFF SATA/NVMe Option 2: Up to 6EDSFF E3.S EC1 NVMe (shown) |

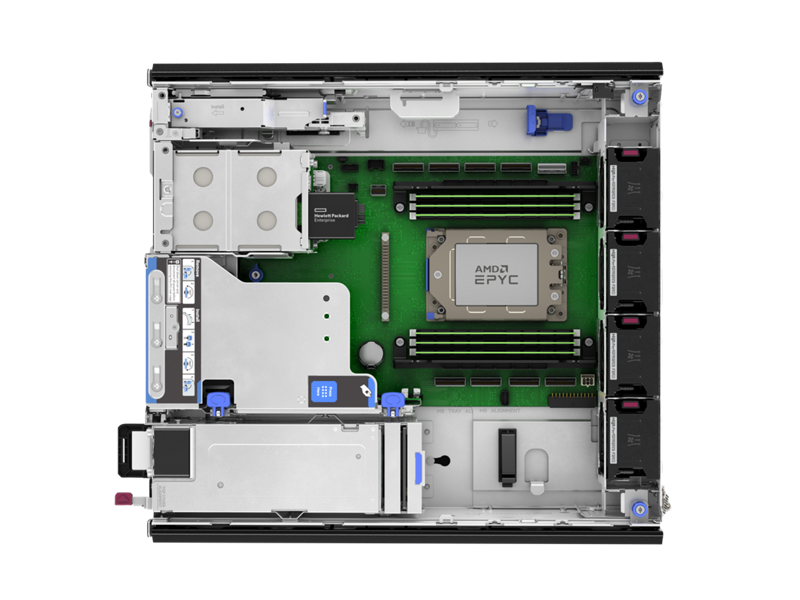

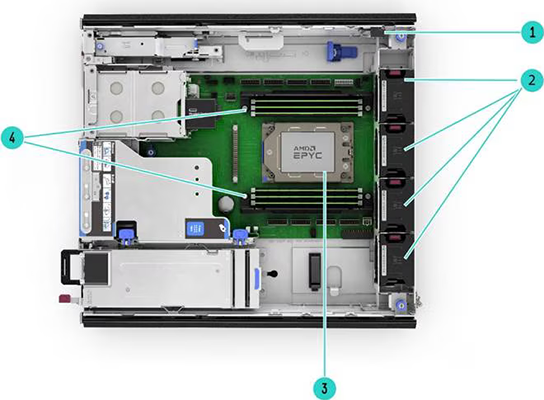

Internal View
| 1 | Chassis Intrusion Detection Switch |
| 2 | 4 Hot Pluggable 2U Standard Fans. Optional: 2U Performance Fans. |
| 3 | Processor is shown with 2U Heat Sink (Up to 1) |
| 4 | 6 DDR5 DIMM Slots |

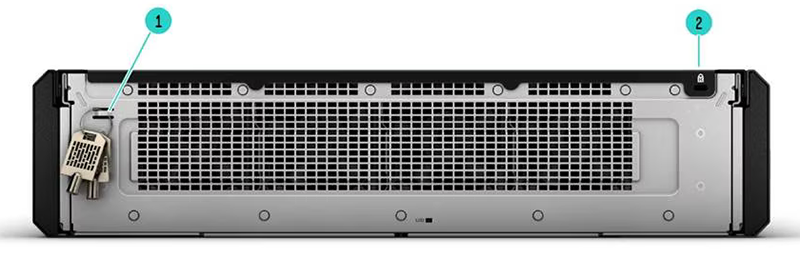

Rear View
| 1 | Access Panel Keys |
| 2 | Kensington Lock |
Notes: 4 Hot Pluggable 2U Standard Fans. Optional: 2U Performance Fans
Documentation:
Download the HPE ProLiant DL145 Gen11 8024P 2.4GHz 8c 1P 1x32GB-R 2SFF NS204i-u NC BCM5719 2x700W PS NA Server Data Sheet (.PDF)
Download the HPE ProLiant DL145 Gen11 server Datasheet (.PDF)
Download the HPE ProLiant DL145 Gen11 server Quick Specs (.PDF)
*AMD EPYC™ is a trademark of Advanced Micro Devices, Inc. All third-party marks are property of their respective owners.
